A primer on APIs

Jorge Cimentada

A Primer on APIs

APIs are designed to work programatically not through a user interface.

Benefits

Schedule requests
Increase intensity of requests no human can do
Construct logic in your program: results from an endpoint are used as input to other endpoint and checks are provided a long the way
Build application that request data real-time

A Primer on APIs

This chapter is hands-on. We focus on programatically accessing an API.

Let’s load the packages we’ll use in this chapter:

library(scrapex)
library(httr2)
library(dplyr)
library(ggplot2)

A Primer on APIs

Objective of the slides:

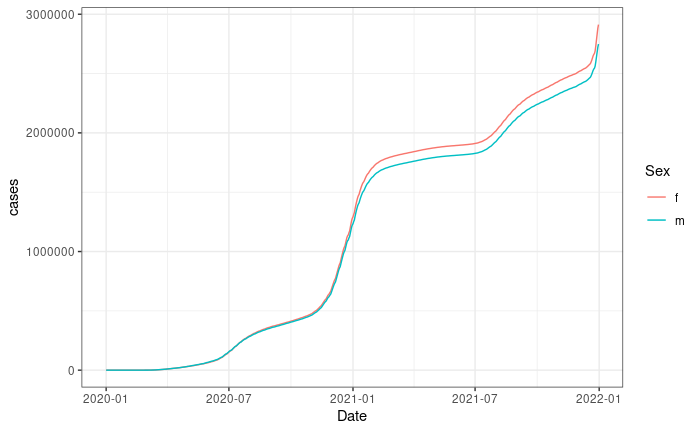

Plot for California

A Primer on APIs

How do we get there? Thank the COVerAGE-DB team.

This package contains an internal API that wraps the COVerAGE-DB database. COVerAGE-DB is an open-access database including cumulative counts of confirmed COVID-19 cases, deaths, tests, and vaccines by age and sex. For more information, visit their website at https://www.coverage-db.org/

scrapex contains a small copy of this database.

A Primer on APIs

api_covid <- api_coveragedb()

[1] "Visit your REST API at http://localhost:12134"
[1] "Documentation is at http://localhost:12134/__docs__/"

The API is now launched in the background
Note that learning about a new API online you won’t have to launch any API.
APIs are hosted on servers elsewhere and you’ll just need to read how to access the API.

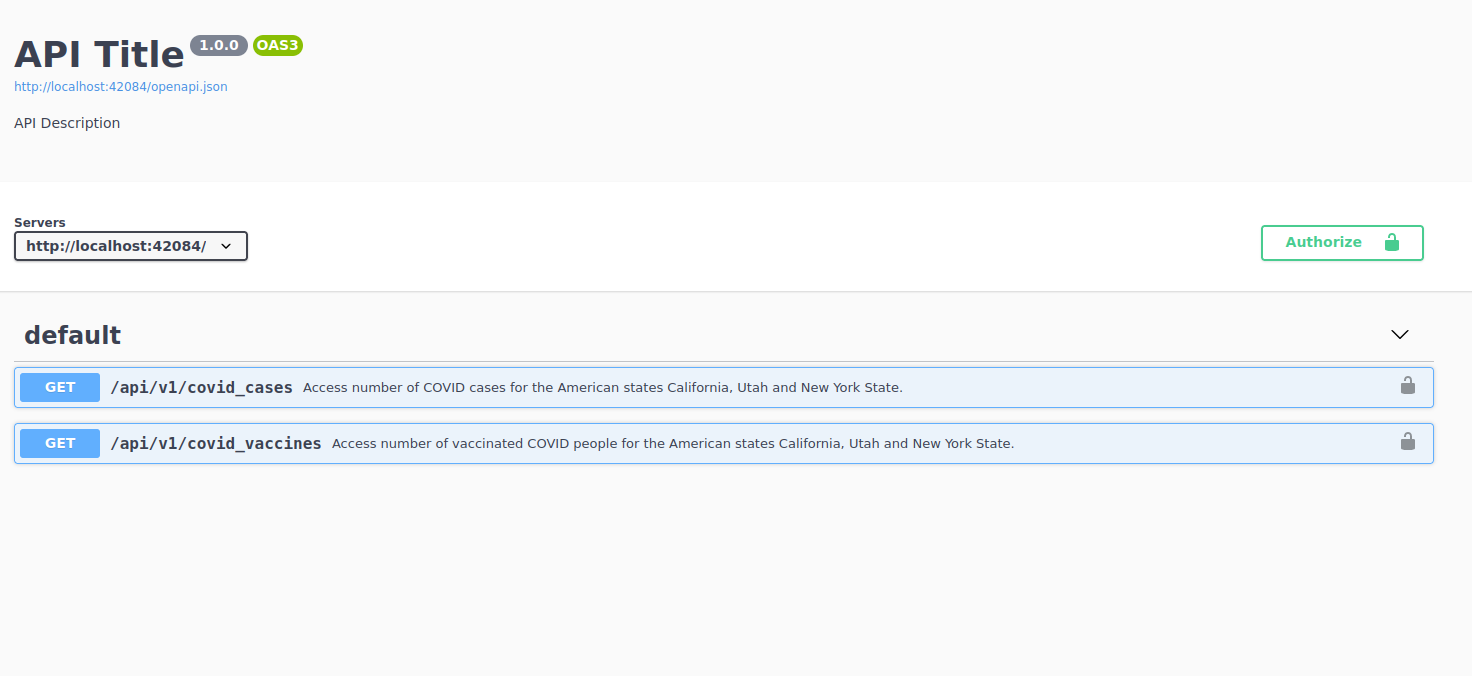

First thing you want to do is access docs.

A Primer on APIs

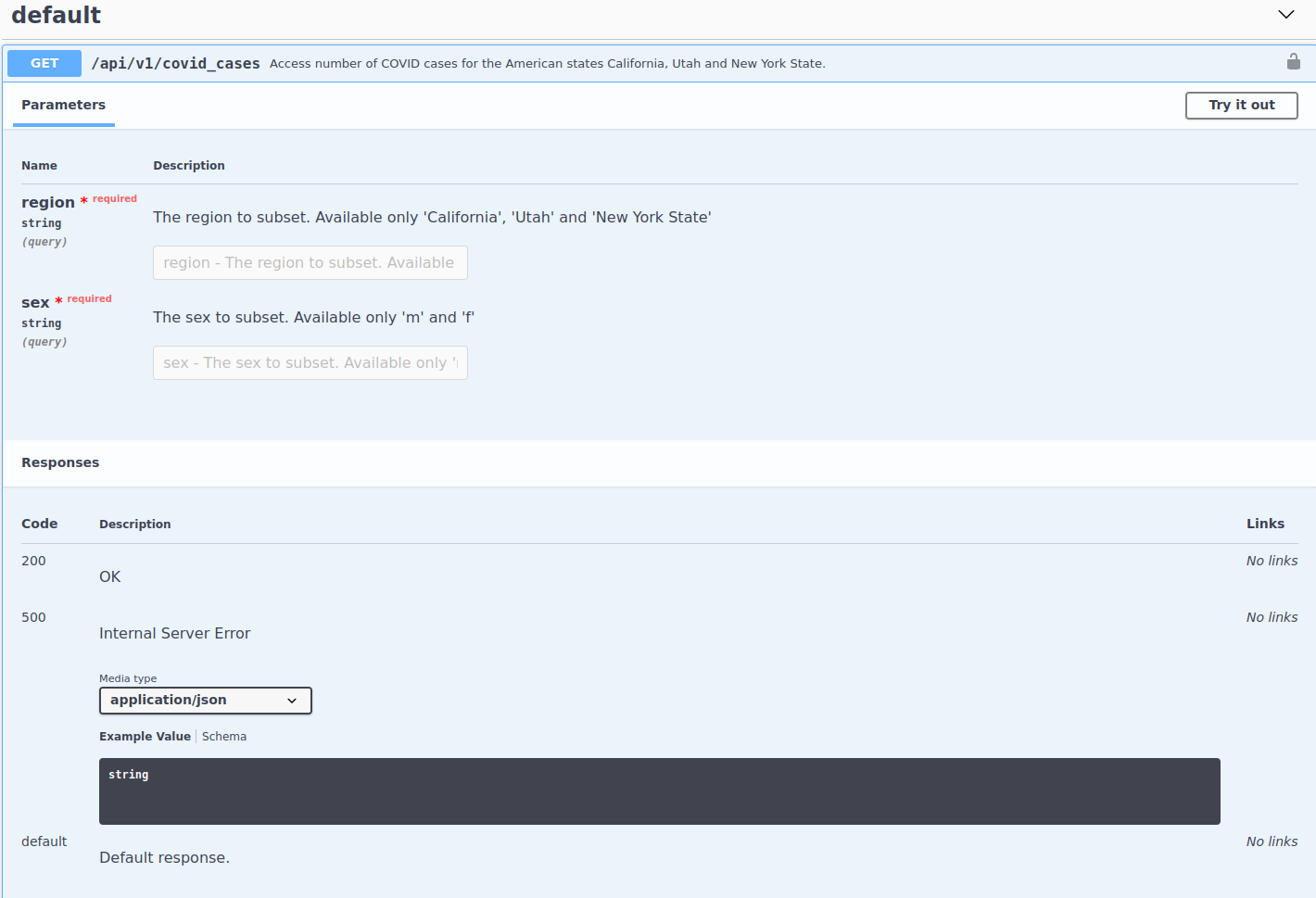

API has two endpoints: one for cases, another for vaccines
API has no authentication
Cases endpoint has two parameters: region and sex, which both are required.
We see that it returns two status codes: 200 and 500
How do make a request with this info?

A Primer on APIs

A base URL. In this case, it’s http://localhost:2234. Yours will be different because you launched it in your local computer.
The endpoint URL of this specific endpoint. For the COVID cases, this is /api/v1/covid_cases.
The parameters in the endpoint which are specified after a ? and each parameter is then concatenated with &.

api_web <- paste0(api_covid$api_web, "/api/v1/covid_cases")
cases_endpoint <- paste0(api_web, "?region=California&sex=m")
cases_endpoint

[1] "http://localhost:12134/api/v1/covid_cases?region=California&sex=m"

Making your first request

Building API paths can be tedious. Let’s use R:

api_web <- paste0(api_covid$api_web, "/api/v1/covid_cases")
req <- request(api_web)
req

<httr2_request>

GET http://localhost:12134/api/v1/covid_cases

Body: empty

request builds a “placeholder” for our request. It says it already has the endpoint URL (we can see it in the GET line) but it does not say anything about our parameters or headers.

Making your first request

Construct URL query programatically:

req_california_m <-
  req %>%
  req_url_query(region = "California", sex = "m")

req_california_m

<httr2_request>

GET http://localhost:12134/api/v1/covid_cases?region=California&sex=m

Body: empty

Do you see the idea here? request builds a placeholder for the endpoint and then you add as many “add-on’s” as you want to your request.

Making your first request

req_california_m %>%
  req_auth_basic(username = "fake name", password = "fake password") %>%
  req_retry(max_tries = 3, max_seconds = 5)

<httr2_request>

GET http://localhost:12134/api/v1/covid_cases?region=California&sex=m

Headers:

• Authorization: '<REDACTED>'

Body: empty

Policies:

• retry_max_tries: 3

• retry_max_wait: 5

See how we can “add” as many things to our “request”? These things might came in the headers or defined in R.

Making your first request

Let’s get back to our previous request:

req_california_m

<httr2_request>

GET http://localhost:12134/api/v1/covid_cases?region=California&sex=m

Body: empty

Making your first request

Once the request is ready, perform the request with req_perform:

resp_california_m <-
  req_california_m %>%
  req_perform()

resp_california_m

<httr2_response>

GET http://localhost:12134/api/v1/covid_cases?region=California&sex=m

Status: 200 OK

Content-Type: application/json

Body: In memory (1086936 bytes)

Making your first request

We can interpret a few things out of this request.

It was successful. The 200 status code means that it was OK, so nothing failed
The response content-type is JSON, meaning the data that was sent is in JSON format
The actual body of the request has data, which is now loaded in RAM memory
All request data has functions req_*. Response functions have resp_*

Making your first request

For example:

resp_status(resp_california_m)

[1] 200

resp_content_type(resp_california_m)

[1] "application/json"

resp_encoding(resp_california_m)

[1] "UTF-8"

In our case, we need resp_body_json to extract the data.

Making your first request

resp_body_california_m <-
  resp_california_m %>%
  resp_body_json(simplifyVector = TRUE) %>%
  as_tibble()

resp_body_california_m

# A tibble: 5,848 × 11
   Country Region Code  Date  Sex   Age   AgeInt Metric Measure Value templateID
   <chr>   <chr>  <chr> <chr> <chr> <chr>  <int> <chr>  <chr>   <int> <chr>
 1 USA     Calif… US-CA 2020… m     0         10 Count  Cases       0 USA_CDC_c…
 2 USA     Calif… US-CA 2020… m     10        10 Count  Cases       0 USA_CDC_c…
 3 USA     Calif… US-CA 2020… m     20        10 Count  Cases       2 USA_CDC_c…
 4 USA     Calif… US-CA 2020… m     30        10 Count  Cases       2 USA_CDC_c…
 5 USA     Calif… US-CA 2020… m     40        10 Count  Cases       1 USA_CDC_c…
 6 USA     Calif… US-CA 2020… m     50        10 Count  Cases       1 USA_CDC_c…
 7 USA     Calif… US-CA 2020… m     60        10 Count  Cases       1 USA_CDC_c…
 8 USA     Calif… US-CA 2020… m     70        10 Count  Cases       1 USA_CDC_c…
 9 USA     Calif… US-CA 2020… m     0         10 Count  Cases       0 USA_CDC_c…
10 USA     Calif… US-CA 2020… m     10        10 Count  Cases       0 USA_CDC_c…
# … with 5,838 more rows

Making your first request

Data has > 5K rows
JSONs can be nested so simplifyVector = TRUE
As opposed to web scraping, data is organized and clean
Additional info such as encoding to read data seamlessly
Awesome, this was your first request!

Making your first request

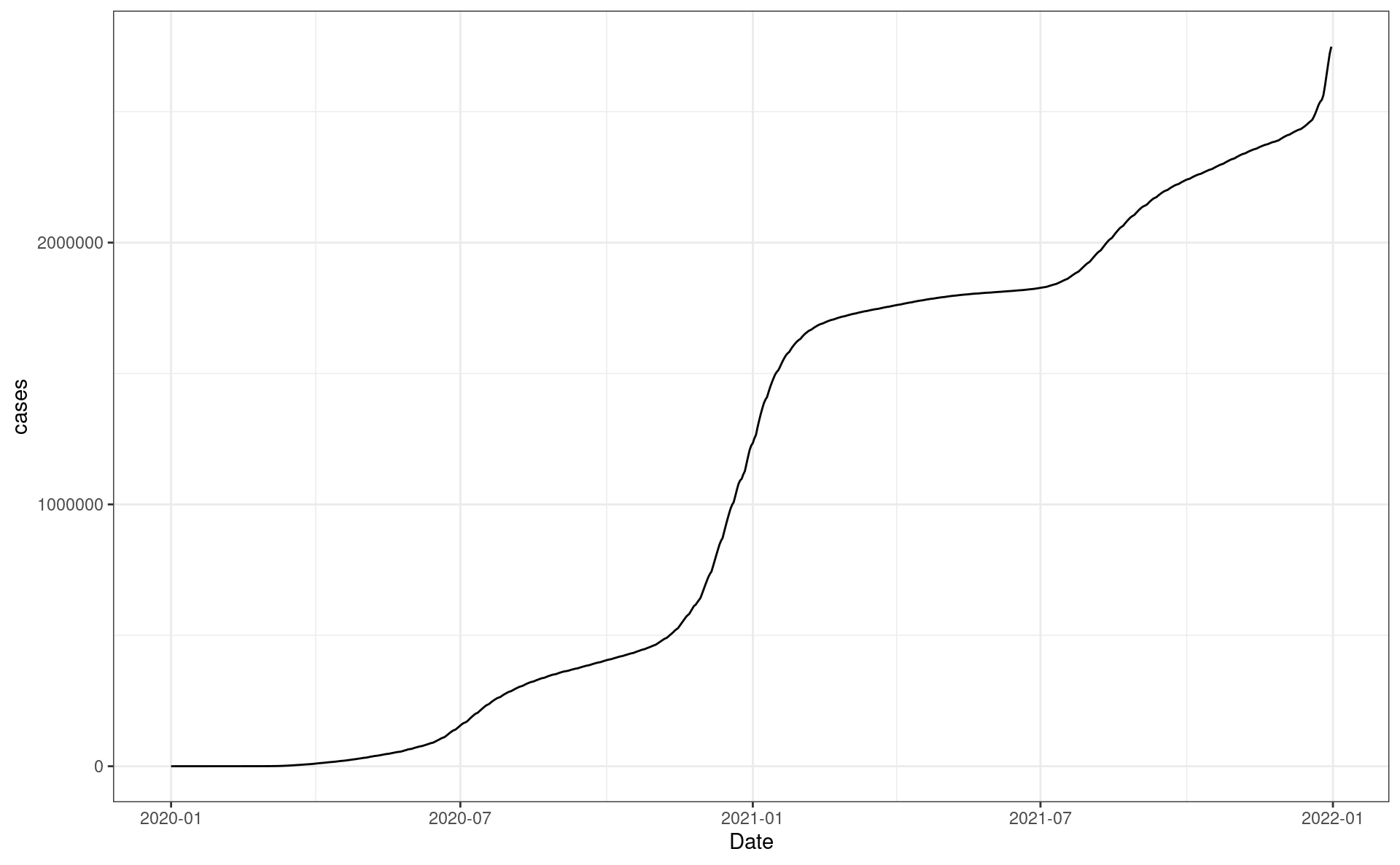

options(scipen = 231241231)

resp_body_california_m <-
  resp_body_california_m %>%
  mutate(Date = lubridate::ymd(Date)) %>%
  group_by(Date, Sex) %>%
  summarize(cases = sum(Value))

resp_body_california_m %>%
  ggplot(aes(Date, cases)) +
  geom_line() +
  theme_bw()

Making your first request

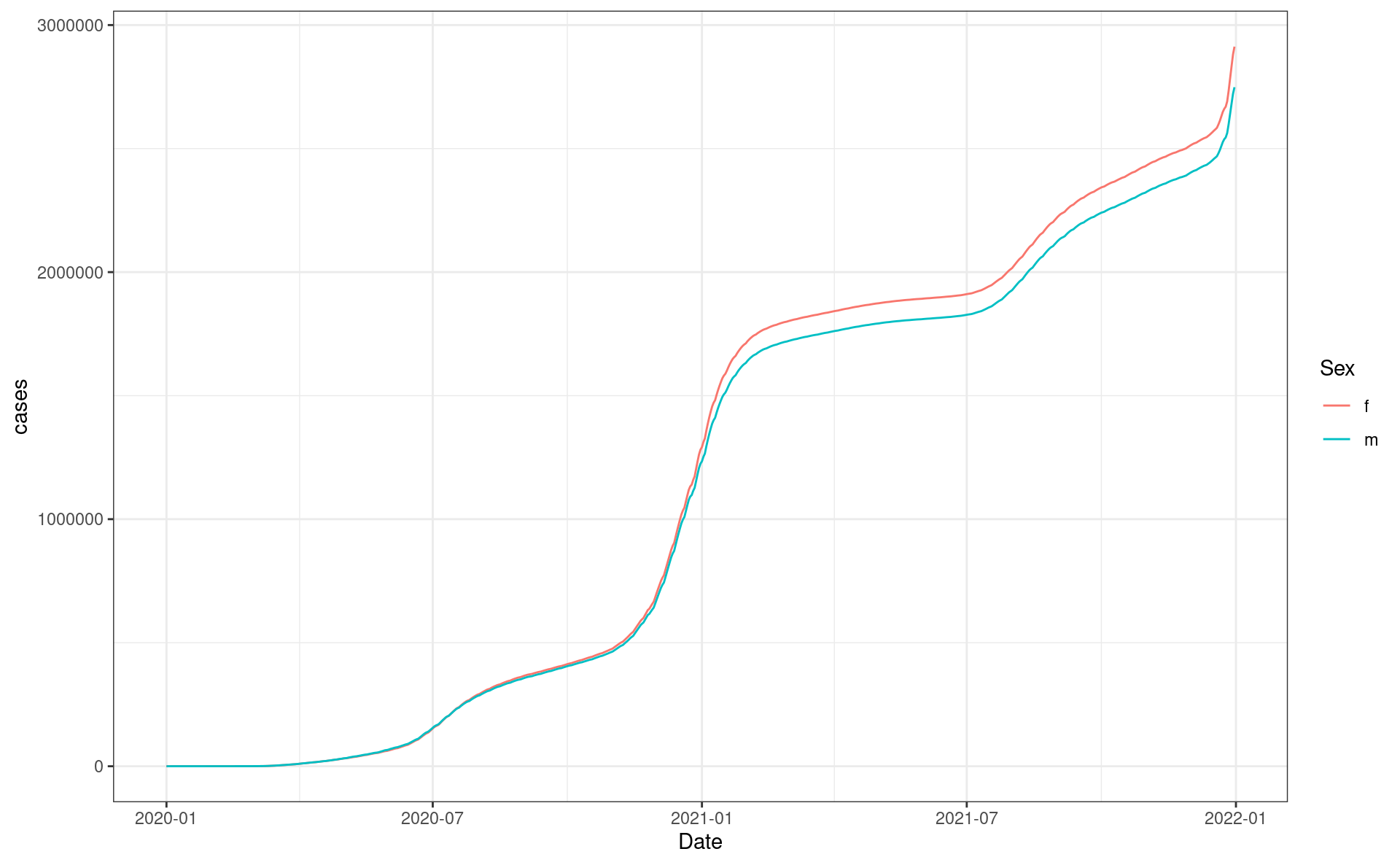

# Perform the same request but for females and grab the JSON result
resp_body_california_f <-
  req %>%
  req_url_query(region = "California", sex = 'f') %>%
  req_perform() %>%
  resp_body_json(simplifyVector = TRUE) %>%
  as_tibble()

resp_body_california_f <-
  resp_body_california_f %>%
  mutate(Date = lubridate::ymd(Date)) %>%
  group_by(Date, Sex) %>%
  summarize(cases = sum(Value))

resp_body_california <- bind_rows(resp_body_california_f, resp_body_california_m)

resp_body_california %>%
  ggplot(aes(Date, cases, color = Sex, group = Sex)) +
  geom_line() +
  theme_bw()

Making your first request

Homework

Chapter 12 and 13 – read + exercises

How are project ideas coming along? Should confirm with me by email. Deadline to submit project ideas are next week. I advise to start working on project now. Here.
