Case study: Scraping Spanish school locations from the web

Jorge Cimentada

Case study: Scraping Spanish school locations from the web

Goal:

Scraping Spanish school locations

www.buscocolegio.com is saved locally on the scrapex package in the function spanish_schools_ex():

library(scrapex)
head(spanish_schools_ex(), n = 3)

[1] "/home/runner/.local/share/renv/cache/v5/R-4.2/x86_64-pc-linux-gnu/scrapex/0.0.1.9999/9aa78cbb3eccaaa811756b4bf07fdd1a/scrapex/extdata/spanish_schools_ex/school_15012626.html"
[2] "/home/runner/.local/share/renv/cache/v5/R-4.2/x86_64-pc-linux-gnu/scrapex/0.0.1.9999/9aa78cbb3eccaaa811756b4bf07fdd1a/scrapex/extdata/spanish_schools_ex/school_15013308.html"
[3] "/home/runner/.local/share/renv/cache/v5/R-4.2/x86_64-pc-linux-gnu/scrapex/0.0.1.9999/9aa78cbb3eccaaa811756b4bf07fdd1a/scrapex/extdata/spanish_schools_ex/school_2009122.html"

These are the links to the landing page of each school inside the website. There are 27 schools saved locally.

Scraping Spanish school locations

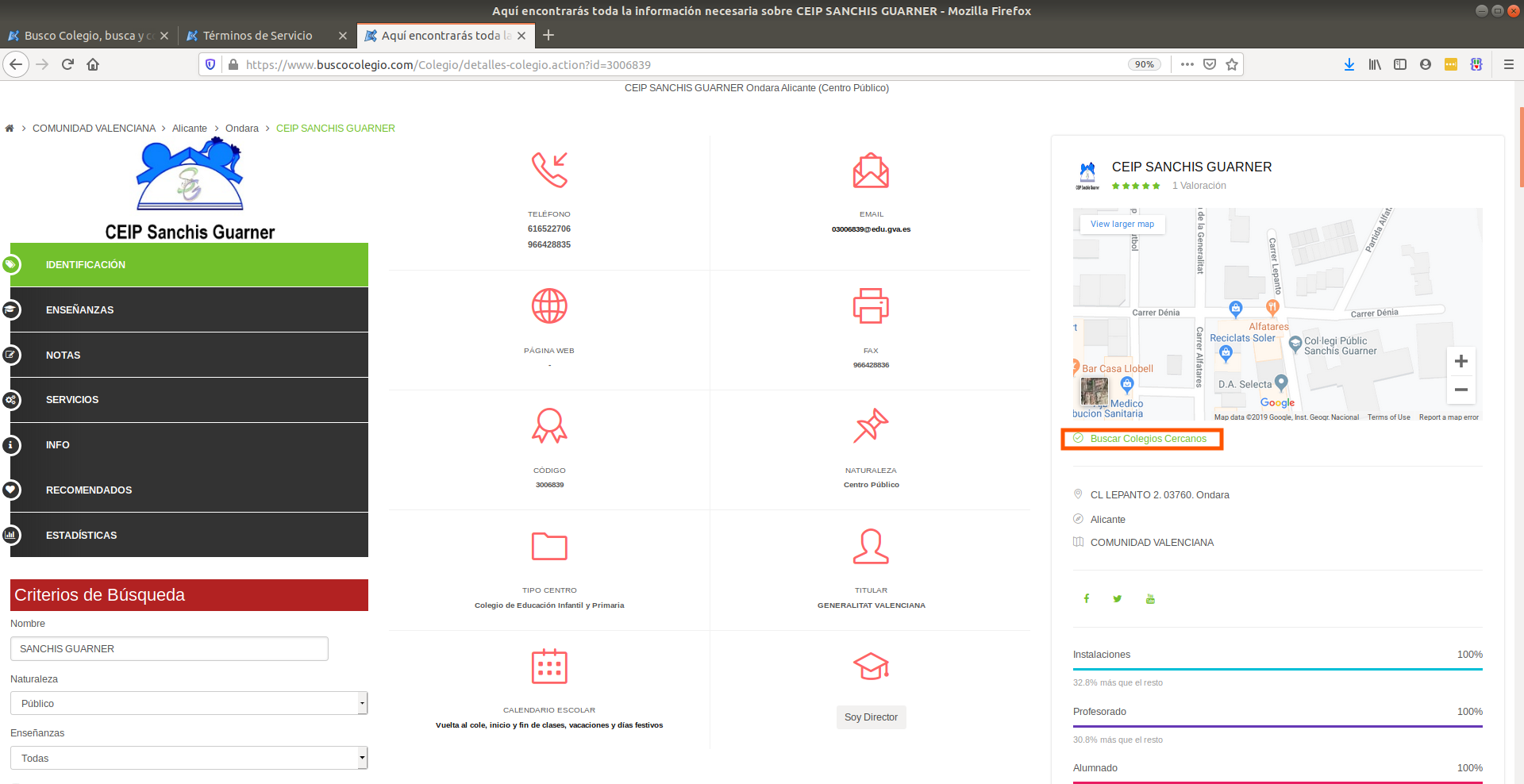

Let’s see how one school website looks like:

library(xml2)
library(httr)
library(tidyverse)
library(sf)
library(rnaturalearth)
library(scrapex)

school_links <- spanish_schools_ex()
school_url <- school_links[13]

browseURL(prep_browser(school_url))

Scraping Spanish school locations

Build a scraper for one school

Read it into R:

school_raw <- read_html(school_url) %>% xml_child()
school_raw

{html_node}
<head>
 [1] <title>Aquí encontrarás toda la información necesaria sobre CEIP SANCHIS ...
 [2] <meta charset="utf-8">\n
 [3] <meta name="viewport" content="width=device-width, initial-scale=1, shri ...
 [4] <meta http-equiv="x-ua-compatible" content="ie=edge">\n
 [5] <meta name="author" content="BuscoColegio">\n
 [6] <meta name="description" content="Encuentra toda la información necesari ...
 [7] <meta name="keywords" content="opiniones SANCHIS GUARNER, contacto SANCH ...
 [8] <link rel="shortcut icon" href="/favicon.ico">\n
 [9] <link rel="stylesheet" href="//fonts.googleapis.com/css?family=Roboto+Sl ...
[10] <link rel="stylesheet" href="https://s3.eu-west-3.amazonaws.com/buscocol ...
[11] <link rel="stylesheet" href="/assets/vendor/icon-awesome/css/font-awesom ...
[12] <link rel="stylesheet" href="/assets/vendor/icon-line/css/simple-line-ic ...
[13] <link rel="stylesheet" href="/assets/vendor/icon-line-pro/style.css">\n
[14] <link rel="stylesheet" href="/assets/vendor/icon-hs/style.css">\n
[15] <link rel="stylesheet" href="https://s3.eu-west-3.amazonaws.com/buscocol ...
[16] <link rel="stylesheet" href="https://s3.eu-west-3.amazonaws.com/buscocol ...
[17] <link rel="stylesheet" href="https://s3.eu-west-3.amazonaws.com/buscocol ...
[18] <link rel="stylesheet" href="https://s3.eu-west-3.amazonaws.com/buscocol ...
[19] <link rel="stylesheet" href="https://s3.eu-west-3.amazonaws.com/buscocol ...
[20] <link rel="stylesheet" href="https://s3.eu-west-3.amazonaws.com/buscocol ...
...

Build a scraper for one school

Objective: extract school locations.
You always want to begin by browsing the source code on your browser
Exploring the output of read_html is not the best way to explore what you’re looking for
Get very familiar with the website. Scraping two websites will require vastly different strategies.

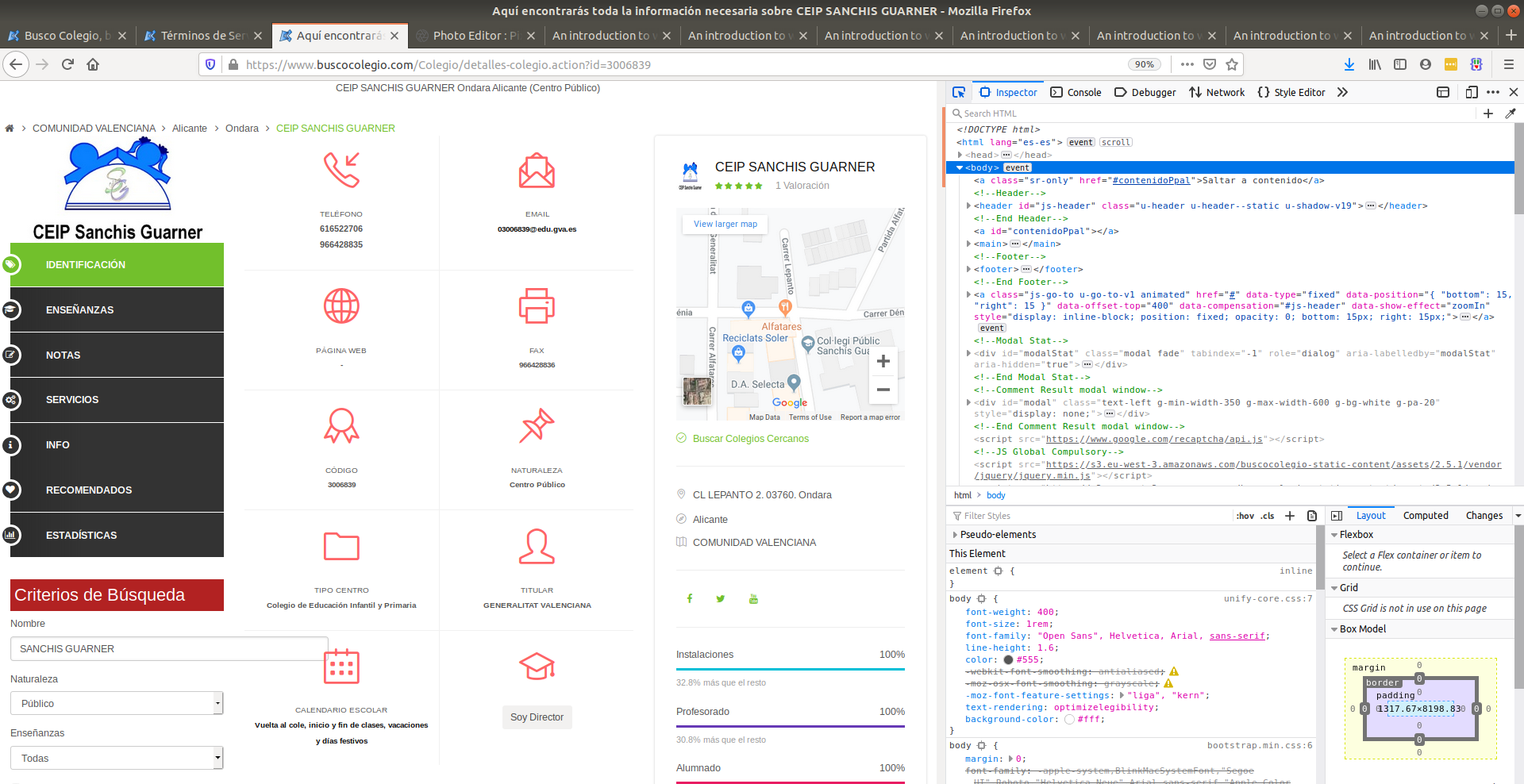

We’ll use the developers tool from your browser: CTRL + SHIFT + c

Build a scraper for one school

This is like an open book. You need to search and explore what you’re looking for. This is unstructured in nature. First intuition: look for the source code close to the map:

Build a scraper for one school

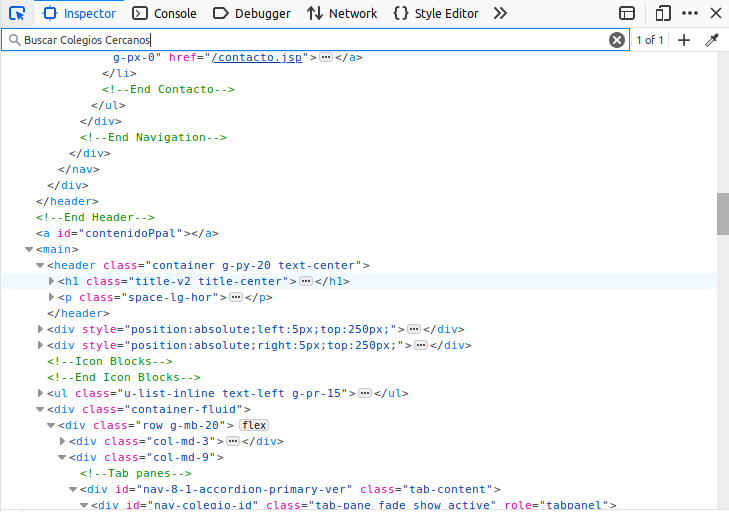

CTRL + F will pop up a search bar as other browsers. Search for terms next to what you’re looking for:

Build a scraper for one school

Fast track to what we’re looking for:

Build a scraper for one school

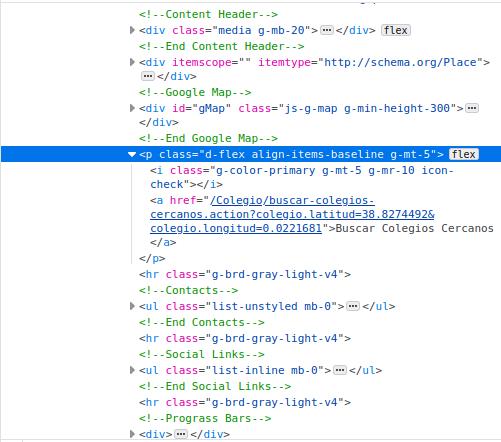

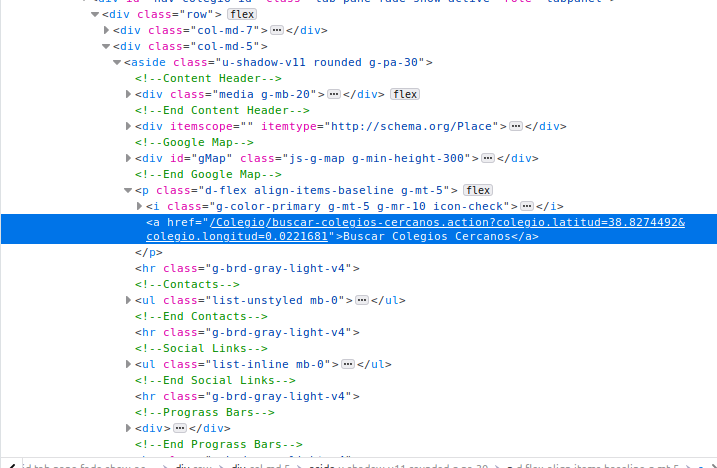

Remember, we’re just looking at the source code of the maps section:

Build a scraper for one school

In case you didn’t know, the coordinates are hidden in a string inside the href tag:

Build a scraper for one school

Typical brain storming:

Extract a unique tag?
Extract a common tag but with a unique attribute?
Extract a common tag but filtering through the ascendants of that tag?
Extract only filtering by text of an attribute, regardless of the tag?

There are many different ways to get what you’re looking for. XPath is very handy for this 👏.

Build a scraper for one school

We’ll go with option 3:

Build a scraper for one school

Tag  with a descendant <a> will return too many results
We can combine option 3 with option 2: Tag  with a unique text attribute with a descendant <a>.
Possible XPath: find all p tags with class set to d-flex align-items-baseline g-mt-5. If we get one match, we’re on the right track:

# Search for all <p> tags with that class in the document
school_raw %>%
  xml_find_all("//p[@class='d-flex align-items-baseline g-mt-5']")

{xml_nodeset (1)}
[1] <p class="d-flex align-items-baseline g-mt-5">\r\n\t                    < ...

Build a scraper for one school

Extend XPath to say: find all a tags which are children of a p tag with class set to d-flex align-items-baseline g-mt-5.
Or in other words: append //a to the previous XPath

# Search for all <p> tags with that class in the document
school_raw %>%
  xml_find_all("//p[@class='d-flex align-items-baseline g-mt-5']//a")

{xml_nodeset (1)}
[1] <a href="/Colegio/buscar-colegios-cercanos.action?colegio.latitud=38.8274 ...

There we are, we can see the coordinates 👏

Build a scraper for one school

Extract href attribute with xml_attr:

location_str <-
  school_raw %>%
  xml_find_all("//p[@class='d-flex align-items-baseline g-mt-5']//a") %>%
  xml_attr(attr = "href")

location_str

[1] "/Colegio/buscar-colegios-cercanos.action?colegio.latitud=38.8274492&colegio.longitud=0.0221681"

Awesome, but now we need some ninja string skills to extract the coordinates.

Data Cleaning

We need some regex skills to extract this. Let’s brain storming:

First coordinate appears after the first =
There’s a few words like ‘colegio’ (this is just Spanish for school) and ‘longitud’ that are in the middle of the two coordinates.
A single regex need not do all the work. Do it one step at a time.
One first step would be: extract any text after the = until the end of the string

Data Cleaning

Possible regex: "=.+$" which captures a = followed by any character (the .) repeated 1 or more times (+) until the end of the string ($). Let’s test it:

location <-
  location_str %>%
  str_extract_all("=.+$")

location

[[1]]
[1] "=38.8274492&colegio.longitud=0.0221681"

There we go!

Data Cleaning

Now we need to replace all unwanted letters in the strings. One way would be to say:

Replace the = or colegio.longitud with an empty string.
Why not replace the & as well? Because we can split the string based on & later

location <-
  location %>%
  str_replace_all("=|colegio\\.longitud", "")

location

[1] "38.8274492&0.0221681"

Data Cleaning

location <-
  location %>%
  str_split("&") %>%
  .[[1]]

location

[1] "38.8274492" "0.0221681"

Great, that’s it, this is data we’ve looking for in the entire chapter. Let’s summarize the work so far:

Using XPath to extract tags that match our data
Clean up the data with some regex
Only do this for a single school since it’s much easier

Scaling the scraper to all schools

When scraping repetitively similar pages, it always makes sense to start small.
Focus your efforts on a single school
Wrap all your work into a function that works for that single school
Loop over all other schools applying the tested function
Set your User-Agent to identify yourself

Scaling the scraper to all schools

# This sets your `User-Agent` globally so that all requests are identified with this `User-Agent`
set_config(
  user_agent("Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:105.0) Gecko/20100101 Firefox/105.0; Jorge Cimentada / cimentadaj@gmail.com")
)

# Collapse all of the code from above into one function called
# school grabber

school_grabber <- function(school_url) {
  # We add a time sleep of 5 seconds to avoid
  # sending too many quick requests to the website
  Sys.sleep(5)

  school_raw <- read_html(school_url) %>% xml_child()

  location_str <-
    school_raw %>%
    xml_find_all("//p[@class='d-flex align-items-baseline g-mt-5']//a") %>%
    xml_attr(attr = "href")

  location <-
    location_str %>%
    str_extract_all("=.+$") %>%
    str_replace_all("=|colegio\\.longitud", "") %>%
    str_split("&") %>%
    .[[1]]

  # Turn into a data frame
  data.frame(
    latitude = location[1],
    longitude = location[2],
    stringsAsFactors = FALSE
  )
}

school_grabber(school_url)

    latitude longitude
1 38.8274492 0.0221681

Scaling the scraper to all schools

Works for a single school, let’s loop over all other schools:

coordinates <- map_dfr(school_links, school_grabber)
coordinates

     latitude  longitude
1  42.7277870 -8.6567935
2  43.2443899 -8.8921645
3  38.9559234 -1.2255769
4  39.1865665 -1.6225903
5  40.3824530 -3.6410388
6  40.2292912 -3.1106322
7  40.4385997 -3.6970366
8  40.3351393 -3.5155669
9  40.5054637 -3.3738441
10 40.6382608 -3.4537107
11 40.3854323 -3.6639500
12 37.7648471 -1.5030467
13 38.8274492  0.0221681
14 40.9943370 -5.6224391
15 40.9943370 -5.6224391
16 40.5603732 -5.6703725
17 40.9943370 -5.6224391
18 40.9943370 -5.6224391
19 41.1359296  0.9901905
20 41.2615548  1.1670507
21 41.2285137  0.5461471
22 41.1458017  0.8199749
23 41.1834060  0.5680564
24 42.0781977  1.8203155
25 42.2524468  1.8621546
26 41.7376665  1.8383666
27 41.6234490  2.0013628

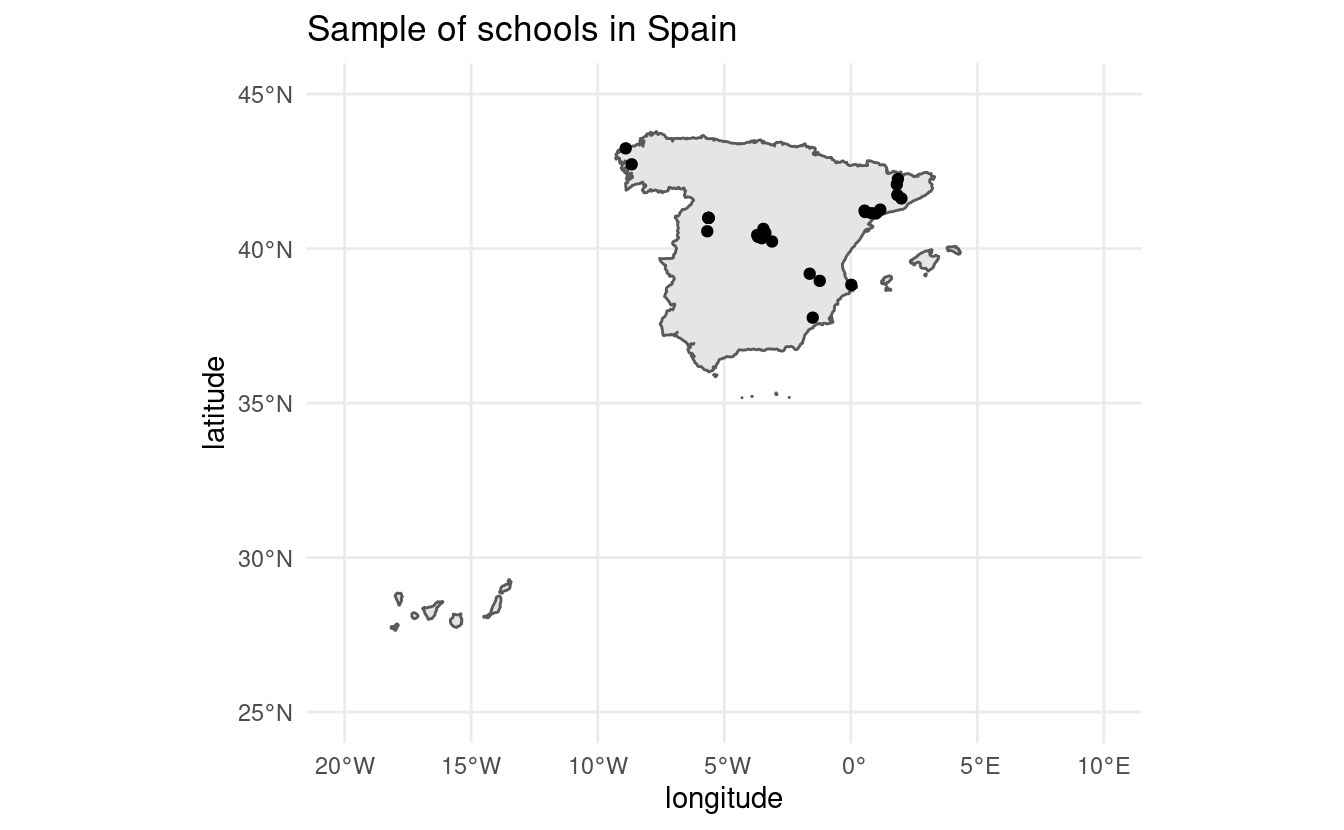

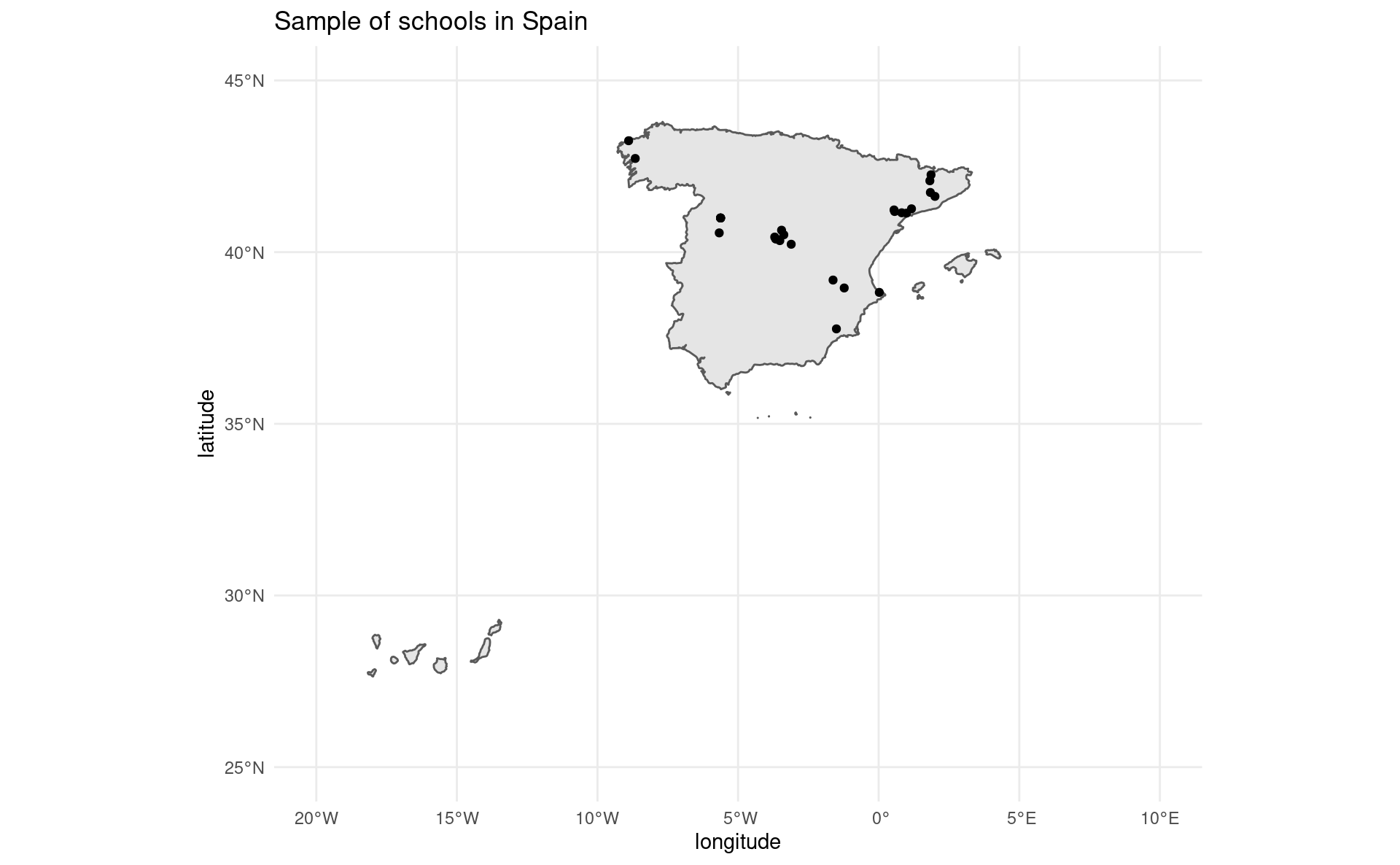

Plotting all schools

coordinates <- mutate_all(coordinates, as.numeric)

sp_sf <-
  ne_countries(scale = "large", country = "Spain", returnclass = "sf") %>%
  st_transform(crs = 4326)

ggplot(sp_sf) +
  geom_sf() +
  geom_point(data = coordinates, aes(x = longitude, y = latitude)) +
  coord_sf(xlim = c(-20, 10), ylim = c(25, 45)) +
  theme_minimal() +
  ggtitle("Sample of schools in Spain")

Plotting all schools

Scraping public/private school

Private/public school info can help understand inequality.
Mapping school location to average income at the neighborhood level
Correlating private/public school quotas with income can understand inequality patterns
Luckily, the website has the info for us

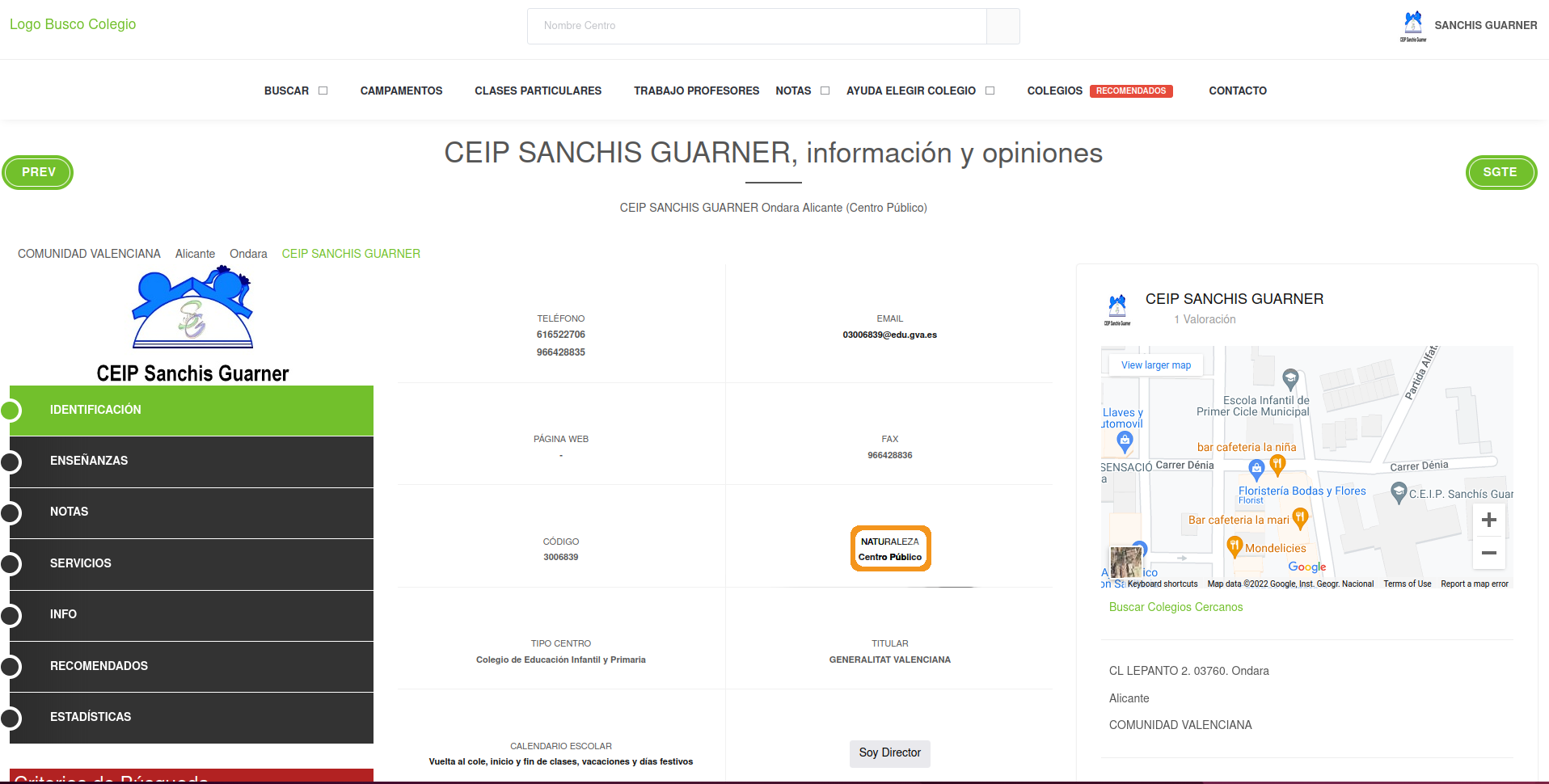

Scraping public/private school

“Centro Público” means Public School

Scraping public/private school

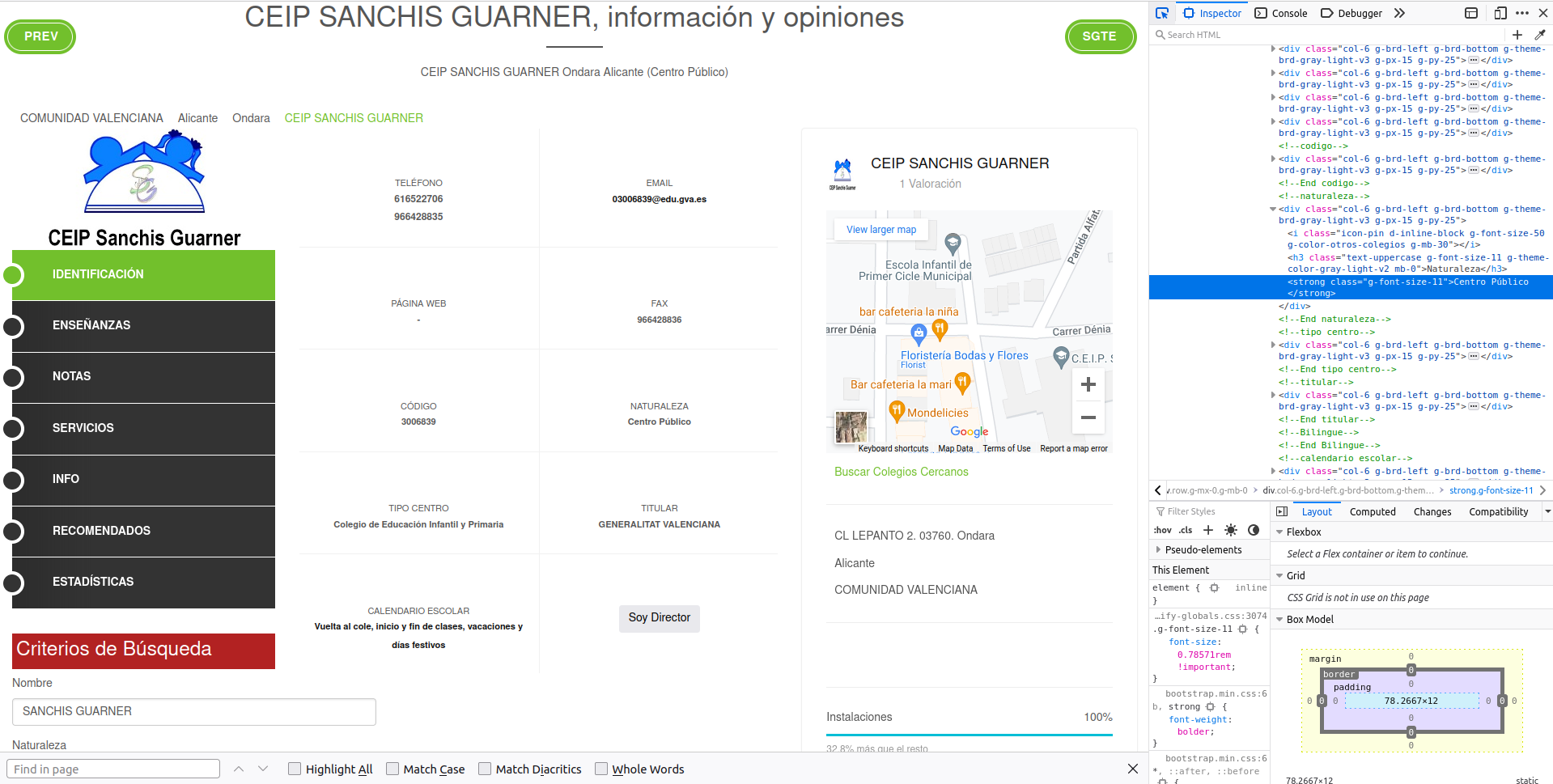

Open up developer tools (CTRL + SHIFT + c) and hover over that info:

Scraping public/private school

Brainstorming scraping strategy:

Info we want is within a  tag
 is bold in HTML world
Too many matches if search for

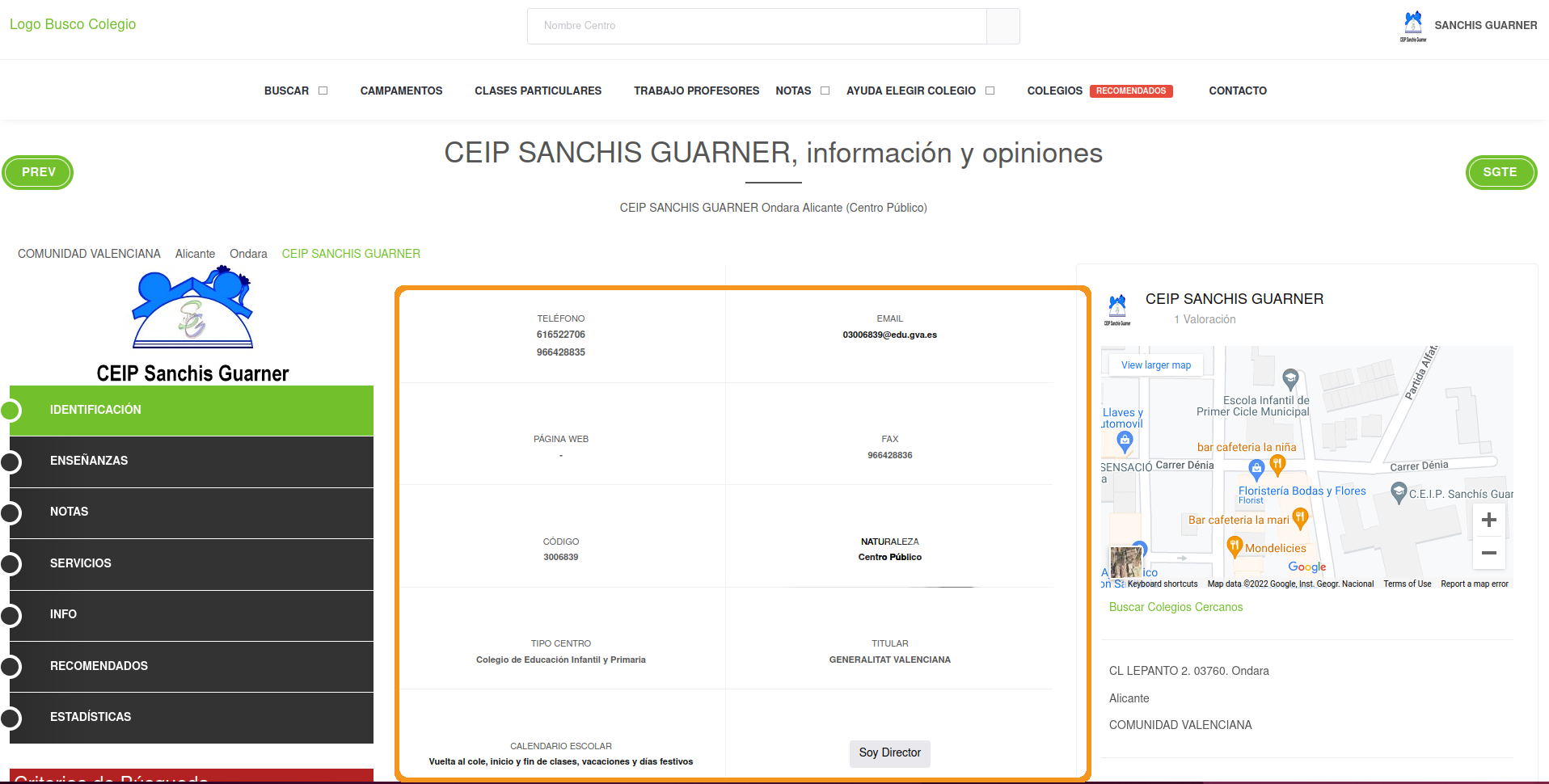

Find an ascendant with a unique attribute. For example: <div> tag with class 'col-6 g-brd-left g-brd-bottom g-theme-brd-gray-light-v3 g-px-15 g-py-25'

Let’s try it.

Scraping public/private school

school_raw %>%
  xml_find_all("//div[@class='col-6 g-brd-left g-brd-bottom g-theme-brd-gray-light-v3 g-px-15 g-py-25']")

{xml_nodeset (10)}
 [1] <div class="col-6 g-brd-left g-brd-bottom g-theme-brd-gray-light-v3 g-px ...
 [2] <div class="col-6 g-brd-left g-brd-bottom g-theme-brd-gray-light-v3 g-px ...
 [3] <div class="col-6 g-brd-left g-brd-bottom g-theme-brd-gray-light-v3 g-px ...
 [4] <div class="col-6 g-brd-left g-brd-bottom g-theme-brd-gray-light-v3 g-px ...
 [5] <div class="col-6 g-brd-left g-brd-bottom g-theme-brd-gray-light-v3 g-px ...
 [6] <div class="col-6 g-brd-left g-brd-bottom g-theme-brd-gray-light-v3 g-px ...
 [7] <div class="col-6 g-brd-left g-brd-bottom g-theme-brd-gray-light-v3 g-px ...
 [8] <div class="col-6 g-brd-left g-brd-bottom g-theme-brd-gray-light-v3 g-px ...
 [9] <div class="col-6 g-brd-left g-brd-bottom g-theme-brd-gray-light-v3 g-px ...
[10] <div class="col-6 g-brd-left g-brd-bottom g-theme-brd-gray-light-v3 g-px ...

What? 10 matches? I was expecting one match..

Scraping public/private school

One strategy is to extract content in all boxes and then extract the specific data we want:

text_boxes <-
  school_raw %>%
  xml_find_all("//div[@class='col-6 g-brd-left g-brd-bottom g-theme-brd-gray-light-v3 g-px-15 g-py-25']//strong") %>%
  xml_text()

text_boxes

 [1] "616522706"
 [2] "966428835"
 [3] "03006839@edu.gva.es"
 [4] "-"
 [5] "966428836"
 [6] "3006839"
 [7] "Centro Público"
 [8] "Colegio de Educación Infantil y Primaria"
 [9] "GENERALITAT VALENCIANA"
[10] "Vuelta al cole, inicio y fin de clases, vacaciones y días festivos"

Scraping public/private school

We don’t know if all schools will have exactly 10 boxes
Make it more precise with regex

single_public_private <-
  text_boxes %>%
  str_detect("Centro") %>%
  text_boxes[.]

single_public_private

[1] "Centro Público"

Scraping public/private school

Same strategy: apply it to one school and scale it to all others:

grab_public_private_school <- function(school_link) {
  Sys.sleep(5)
  school <- read_html(school_link)
  text_boxes <-
    school %>%
    xml_find_all("//div[@class='col-6 g-brd-left g-brd-bottom g-theme-brd-gray-light-v3 g-px-15 g-py-25']//strong") %>%
    xml_text()

  single_public_private <-
    text_boxes %>%
    str_detect("Centro") %>%
    text_boxes[.]


  data.frame(
    public_private = single_public_private,
    stringsAsFactors = FALSE
  )
}

public_private_schools <- map_dfr(school_links, grab_public_private_school)
public_private_schools

Scraping public/private school

   public_private
1  Centro Privado
2  Centro Público
3  Centro Público
4  Centro Público
5  Centro Privado
6  Centro Público
7  Centro Público
8  Centro Privado
9  Centro Público
10 Centro Público
11 Centro Público
12 Centro Público
13 Centro Público
14 Centro Público
15 Centro Público
16 Centro Público
17 Centro Público
18 Centro Privado
19 Centro Público
20 Centro Público
21 Centro Privado
22 Centro Público
23 Centro Privado
24 Centro Público
25 Centro Público
26 Centro Privado
27 Centro Público

Scraping public/private school

# Let's translate the public/private names from Spanish to English
lookup <- c("Centro Público" = "Public", "Centro Privado" = "Private")
public_private_schools$public_private <- lookup[public_private_schools$public_private]

# Merge it with the coordinates data
all_schools <- cbind(coordinates, public_private_schools)

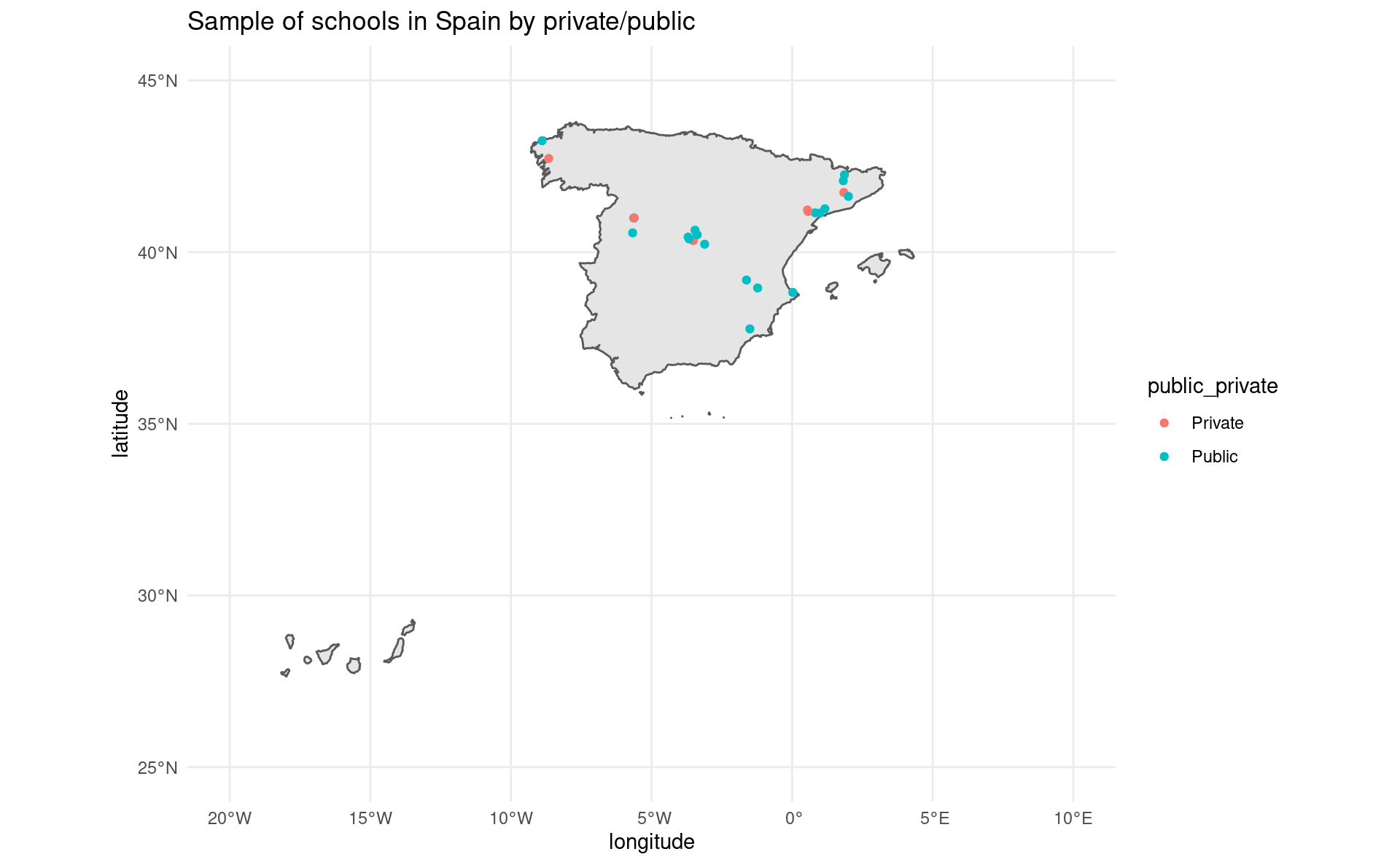

# Plot private/public by coordinates
ggplot(sp_sf) +
  geom_sf() +
  geom_point(data = all_schools, aes(x = longitude, y = latitude, color = public_private)) +
  coord_sf(xlim = c(-20, 10), ylim = c(25, 45)) +
  theme_minimal() +
  ggtitle("Sample of schools in Spain by private/public")

Scraping public/private school

Extracting type of school

One additional information that might also be useful to know is the type of each school: kindergarten, secondary school, primary school, etc. This information is just next to whether the school is private or public:

Extracting type of school

Brain storm:

This is the exact same code as before?
Can we recycle at least until extracting the div XPath?
Problem: we can’t know in advance the type of center so we can’t regex to detect it
Instead: detect Tipo Centro, genetic for “Type of center”

Extracting type of school

text_boxes <-
  school_raw %>%
  xml_find_all("//div[@class='col-6 g-brd-left g-brd-bottom g-theme-brd-gray-light-v3 g-px-15 g-py-25']")

text_boxes

{xml_nodeset (10)}
 [1] <div class="col-6 g-brd-left g-brd-bottom g-theme-brd-gray-light-v3 g-px ...
 [2] <div class="col-6 g-brd-left g-brd-bottom g-theme-brd-gray-light-v3 g-px ...
 [3] <div class="col-6 g-brd-left g-brd-bottom g-theme-brd-gray-light-v3 g-px ...
 [4] <div class="col-6 g-brd-left g-brd-bottom g-theme-brd-gray-light-v3 g-px ...
 [5] <div class="col-6 g-brd-left g-brd-bottom g-theme-brd-gray-light-v3 g-px ...
 [6] <div class="col-6 g-brd-left g-brd-bottom g-theme-brd-gray-light-v3 g-px ...
 [7] <div class="col-6 g-brd-left g-brd-bottom g-theme-brd-gray-light-v3 g-px ...
 [8] <div class="col-6 g-brd-left g-brd-bottom g-theme-brd-gray-light-v3 g-px ...
 [9] <div class="col-6 g-brd-left g-brd-bottom g-theme-brd-gray-light-v3 g-px ...
[10] <div class="col-6 g-brd-left g-brd-bottom g-theme-brd-gray-light-v3 g-px ...

10 boxes of the page

Extracting type of school

selected_node <- text_boxes %>% xml_text() %>% str_detect("Tipo Centro")
selected_node

 [1] FALSE FALSE FALSE FALSE FALSE FALSE  TRUE FALSE FALSE FALSE

Subset that node and from here on we can do as we did last time: extract the strong tag.
XPath .//strong. .//strong means to find all strong tags but the . means to search for all tags below the current selection.

Extracting type of school

single_type_school <-
  text_boxes[selected_node] %>%
  xml_find_all(".//strong") %>%
  xml_text()

single_type_school

[1] "Colegio de Educación Infantil y Primaria"

Extracting type of school

General strategy:

Recycle strategy of extracting all div tags
Can’t know in advance type of school. Search for generic wording in the box.
Extract the specific div node that matches the wording
Searching for the strong tag but only within that box with .//strong.

Extracting type of school

grab_type_school <- function(school_link) {
  Sys.sleep(5)
  school <- read_html(school_link)

  text_boxes <-
    school %>%
    xml_find_all("//div[@class='col-6 g-brd-left g-brd-bottom g-theme-brd-gray-light-v3 g-px-15 g-py-25']")

  selected_node <-
    text_boxes %>%
    xml_text() %>%
    str_detect("Tipo Centro")

  single_type_school <-
    text_boxes[selected_node] %>%
    xml_find_all(".//strong") %>%
    xml_text()


  data.frame(
    type_school = single_type_school,
    stringsAsFactors = FALSE
  )
}

all_type_schools <- map_dfr(school_links, grab_type_school)
all_type_schools

Extracting type of school

                                    type_school
1                              Escuela Infantil
2                              Escuela Infantil
3                              Escuela Infantil
4                              Escuela Infantil
5                              Escuela Infantil
6  Escuela de Educación Infantil, Casa de Niños
7                              Escuela Infantil
8                              Escuela Infantil
9                              Escuela Infantil
10 Escuela de Educación Infantil, Casa de Niños
11                             Escuela Infantil
12      Escuela Municipal de Educación Infantil
13     Colegio de Educación Infantil y Primaria
14                             Escuela Infantil
15                             Escuela Infantil
16                             Escuela Infantil
17                             Escuela Infantil
18                             Escuela Infantil
19                                       Escola
20                                       Escola
21                                       Escola
22                                       Escola
23                                       Escola
24                                       Escola
25                                       Escola
26                                       Escola
27                                       Escola

Extracting type of school

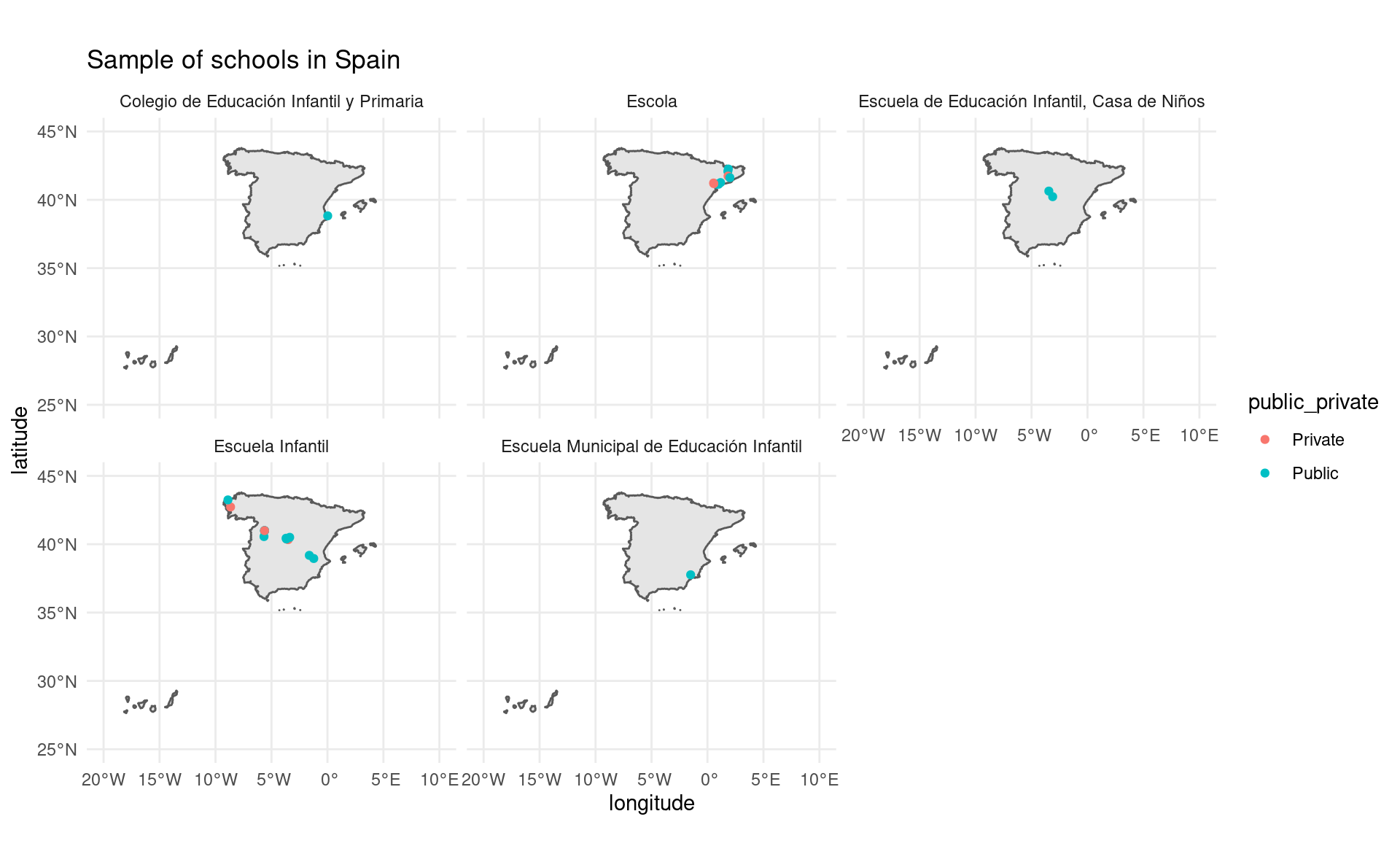

all_schools <- cbind(all_schools, all_type_schools)

ggplot(sp_sf) +
  geom_sf() +
  geom_point(data = all_schools, aes(x = longitude, y = latitude, color = public_private)) +
  coord_sf(xlim = c(-20, 10), ylim = c(25, 45)) +
  facet_wrap(~ type_school) +
  theme_minimal() +
  ggtitle("Sample of schools in Spain")

Extracting type of school

Summary

Web scraping is all about creativity
Knowing some XPath
Mastering some regex
Thinking outside the box

🤯

Homework

Chapter 10 and 11 – read + exercises
Deadline for groups is today. Anyone missing? Here.
Each group should send me an email with their project idea (other team members as cc) and I will advise on whether it’s a good idea. Deadline is in two weeks.
